The Gyptec boards are manufactured industrially through a process of continuous lamination of a mixture of gypsum, water, and additives between two sheets of cardboard.
STANDARD
Laminated gypsum board formed by high quality plaster encased in two sheets of paper.
All type of interior dry construction, such as: partition walls, wall lining, suspended ceilings, lighting and pelmet features and other decorative applications.
Board A – EN 520
Dimensions
Width (mm): 1200
Thickness (mm): 6,5 / 9,5 / 12,5 / 15 / 18
Length (mm): 2000 / 3000
Documents
MOISTURE RESISTANT
Laminated gypsum board formed by high quality plaster encased in two sheets of paper, with water repellent additives and this gives it the water absorption class H1. Suitable for use in wet areas.
Board H – EN 520 (H1)
Dimensions
Width (mm): 1200
Thickness (mm): 12,5 / 15
Length (mm): 2000 / 3000
Documents
FIRE RESISTANT
Laminated plasterboards suitable for areas requiring high fire resistance. All type of interior dry construction.
Reinforced with fiberglass.
Board F – EN 520
Dimensions
Width (mm): 1200
Thickness (mm): 12,5 / 15
Length (mm): 2000 / 3000
Documents
IMPACT RESISTANT
High quality laminated plaster boards with higher density and impact resistance.
Suitable for areas requiring higher damage resistance, such as schools, hospitals and pavilions.
Board D – EN 520
Dimensions
Width (mm): 1200
Thickness (mm): 12,5 / 15
Length (mm): 2000 / 3000
Documents
GOLD
Laminated gypsum board reinforced with fiberglass to improve fire resistance, with greater density and resistance to impact and bending, with water repellent additives to decrease water absorption. Suitable for all interior systems with higher capacity load characteristics, fire and humidity resistance.
Board D, F, H1, I, R – EN 520
Dimensions
Width (mm): 1200
Thickness (mm): 12,5 / 15
Length (mm): 2000 / 2500 / 3000
Documents
All-in-one multi-function board for all interior needs
Excellent product from the range of Gyptec solutions, combines multiple benefits of the various types of boards, allowing to solve all the needs of a project using only one board. In addition to providing better performance in areas of moderate humidity and fire resistance, Gold Plasterboard has higher density and impact resistance suitable for areas of great a uence, such as gyms, shopping centers or hotels.

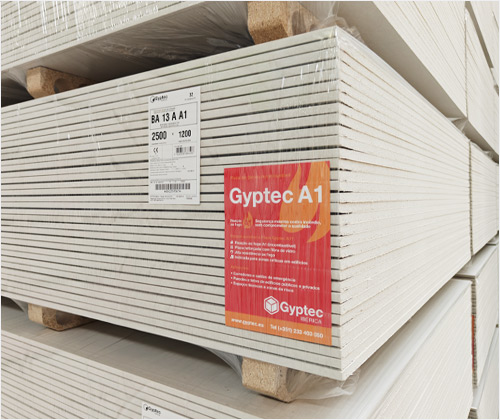

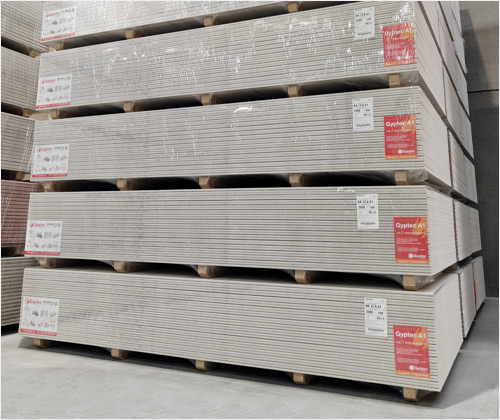

GYPTEC A1
Non-combustible board for maximum fire protection.
Gypsum board composed of two paper liners, reinforced with fiberglass, with a high-quality gypsum core and A1 fire reaction classification. Designed for critical areas requiring maximum fire safety.
Board A – EN 520 (A1)
Dimensions
Width (mm): 1200
Thickness (mm): 12,5 / 15
Length (mm): 2000 / 3000
Documents
Reaction to fire A1
Premium board from the Gyptec range, ensuring maximum fire safety without compromising quality. Recommended for all types of dry construction in interior areas where an A1 fire reaction rating is required. Ideal for corridors and emergency exits, walls and ceilings of public and private buildings, technical rooms, and high-risk zones.
